Vintage Sound With Modern Technology
The MM-50E’s unique Shadow electronics system puts all the electronics inside the pickguard, allowing you complete control of your electric tone without adversely affecting the F-style mandolin’s acoustic tone.
The MM-50E’s ground breaking electronics feature Shadow Germany’s “Quad” NanoMag™ pickup, a unique low impedance humbucker pickup designed in collaboration with Epiphone luthiers. The pickup is equipped with samarium-cobalt magnets that capture true acoustic tone with a wide range of harmonics. Under each string pair is a separate "coil" that only picks up the sound of that string pair, with crosstalk separation of >85dB! Each of the 4 output levels is controlled by 4 trimpots discretely accessible from the top of the pickguard via a mini flathead screwdriver. Once set to your desired levels, typically you would never need to adjust the levels again.

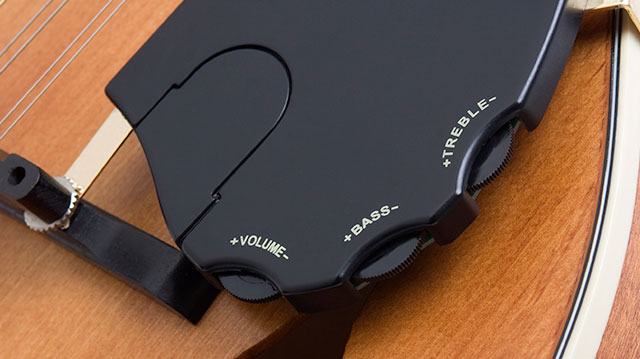

This allows the mandolin to respond and sound just like an acoustic mandolin should. The pickguard features separate rotary master volume, treble, and bass controls as well as an easy-access battery compartment for the light-weight, long lasting 2032 watch-style lithium battery.
